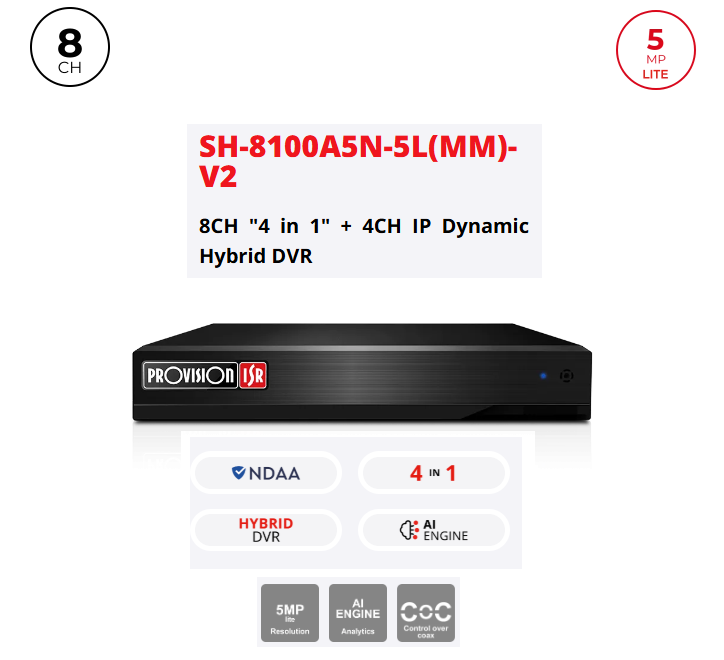

מכשיר הקלטה DVR SH-8100A5N-5L V2 8CH+4CH IP AUDIO IN/OUT 2TB

SH-8100A5-5L

• Video:

Input: Dynamic Hybrid

DVR Oriented: 8 Channel 4in1 HD Analog (BNC) + 4 Channel IP (Over Network)*

NVR Oriented: 0 Channel 4in1 HD Analog (BNC) + 12 Channel IP (Over Network)*

*Including all the HD Analog/IP variations available within the specified ranges.

Output: VGA: 1024x768/1280x1024/1920x1080

HDMI: 1024x768/1280x1024/1920x1080

CVBS (Can be used a spot)

• Recording:

HD Analog – 0-8 Channels

AHD/TVI: 5MP Lite

Max 10FPS Per Channel

Resolution: 1280x1936 (PAL/NTSC)

AHD/TVI: 4MP Lite

Max 12/15FPS Per Channel

Resolution: 1280x1936 (PAL/NTSC)

AHD/TVI/CVI: 1080P

Max 12/15FPS Per Channel

Resolution: 1920x1080 (PAL/NTSC)

(Supported Resolutions: 1080P Lite, 720P in Real-Time)

CVBS: 960H

Max 25/30FPS Per Channel

Resolution: 960x575 (PAL) / 960x480 (NTSC)

IP – 4-12 Channels

IP: 5MP and lower

Max 25/30FPS Per Channel

Resolution: 2560x1920 (PAL/NTSC)

• Playback:

8 Channel Simultaneously (Local)

4 Channel Simultaneously (Remote)

• Analytics:

For IP Channels: Line Crossing, Sterile Area, Object Monitoring, Camera Tampering and Smart Search.

For HD Analog Channels: Line Crossing, Sterile Area and Smart Search.

• Bandwidth:

Incoming: 32-64Mbps

Outgoing: 96Mbps

• Audio:

Input: 8 Channel (RCA) + IP Cameras inputs

Output: 1 Channel (RCA) + IP Cameras outputs

2 Way audio

• Storage:

1 x SATA (Up to 8TB)

1 x eSATA (Up to 8TB)

• USB Port:

2 x USB2.0

• Network:

RJ-45: 100Mbps
